Cardboard Boxes

Cardboard Boxes Design Format

For cardboard boxes, place the brand symbol on the front, back, both sides, and top ( A ). When doing so, be sure to follow the clear space regulations.
On both sides, place care marks, country of origin, and other required information in accordance with the regulations.

Download

Cardboard Boxes: Printing Specification ( PDF )

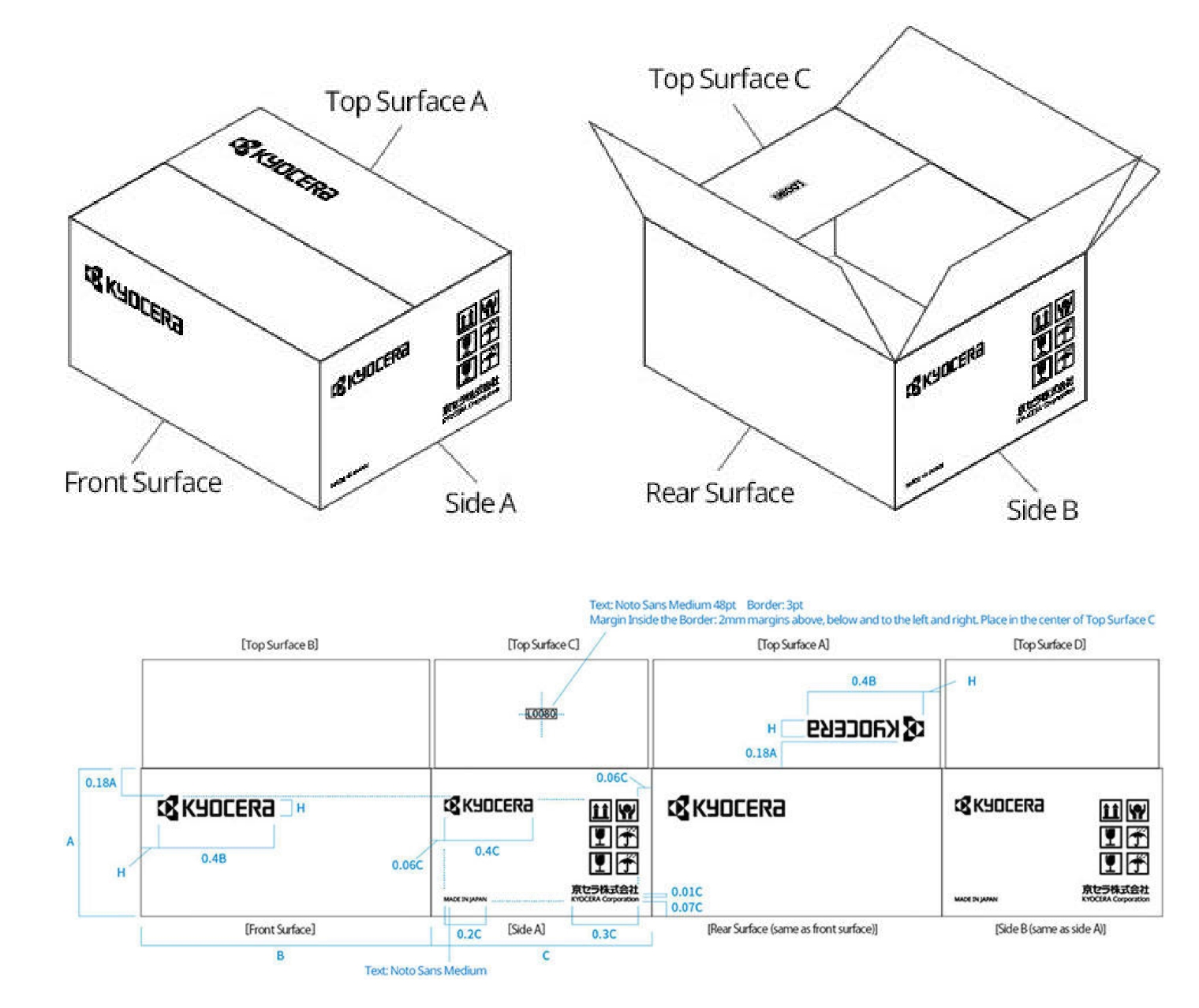

For sizes W : 480 mm or larger ( size ratio specification ) Carton Case L 0080 ‒ Size : W480 × H245 × D365 mm
For sizes W : 480 mm or larger ( size ratio specification )

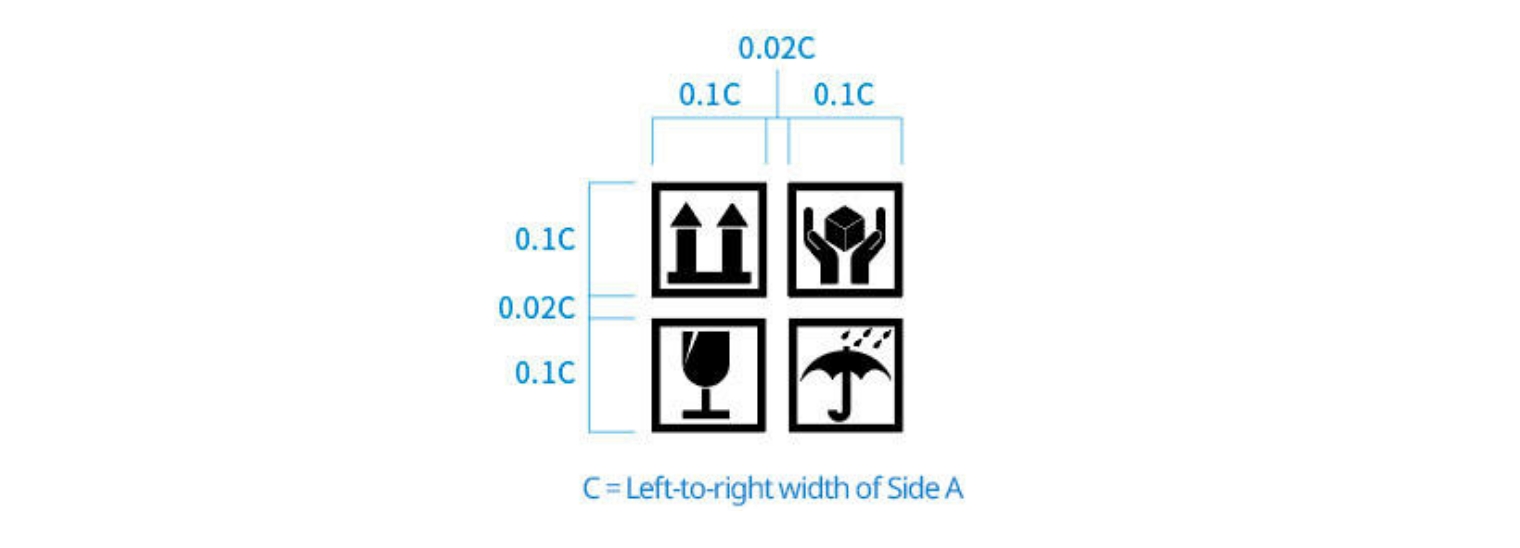

Regulations for pictogram section
Regulations for pictogram section
Download

Cardboard Boxes : Printing Specification ( PDF )

For sizes less than 480 mm but 380 mm or larger (size ratio specification) Carton Case L 0120 ‒
Size : W380 × H300 × D265 mm
For sizes less than 480 mm but 380 mm or larger (size ratio specification)

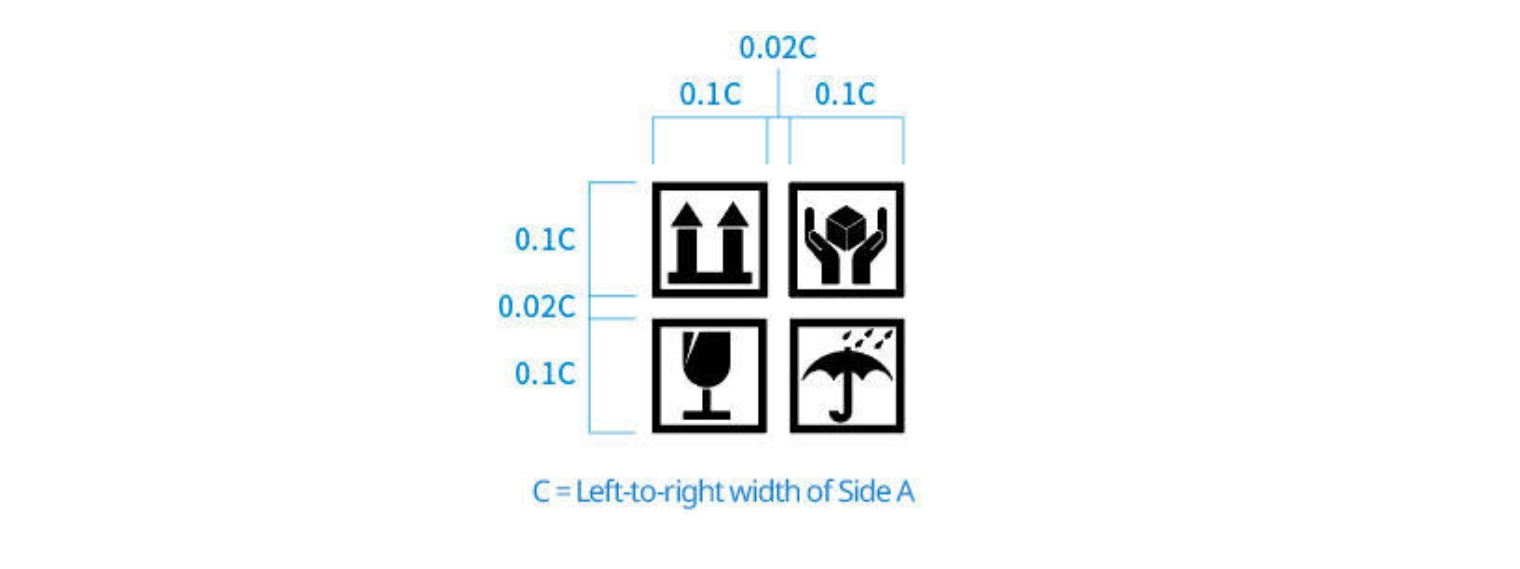

Regulations for pictogram section
Regulations for pictogram section
Download

Cardboard Boxes : Printing Specification ( PDF )

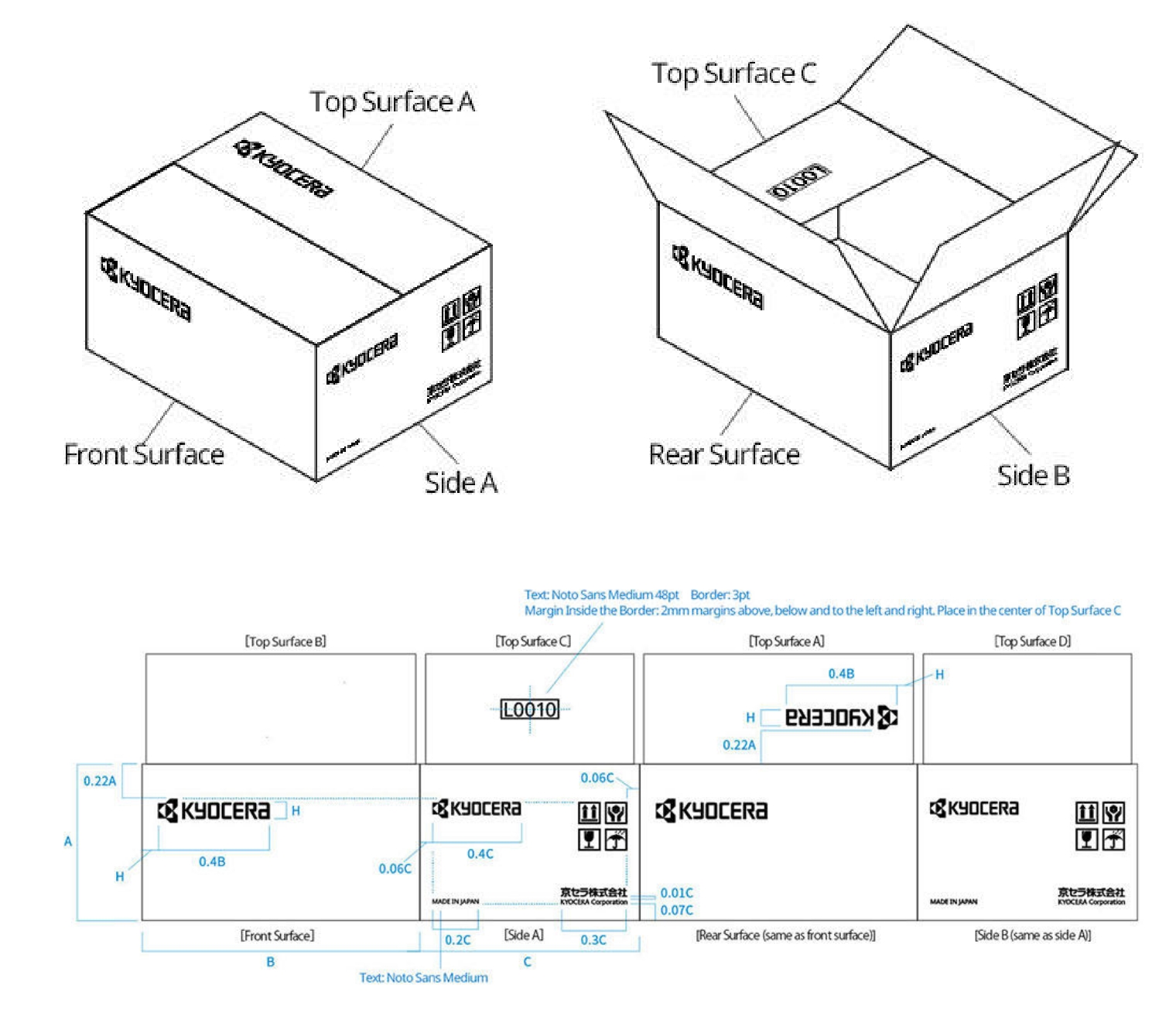

For sizes less than 380 mm ( size ratio specification ) Carton Case L 0010 ‒
Size : W240 × H135 × D190 mm
For sizes less than 380 mm ( size ratio specification )

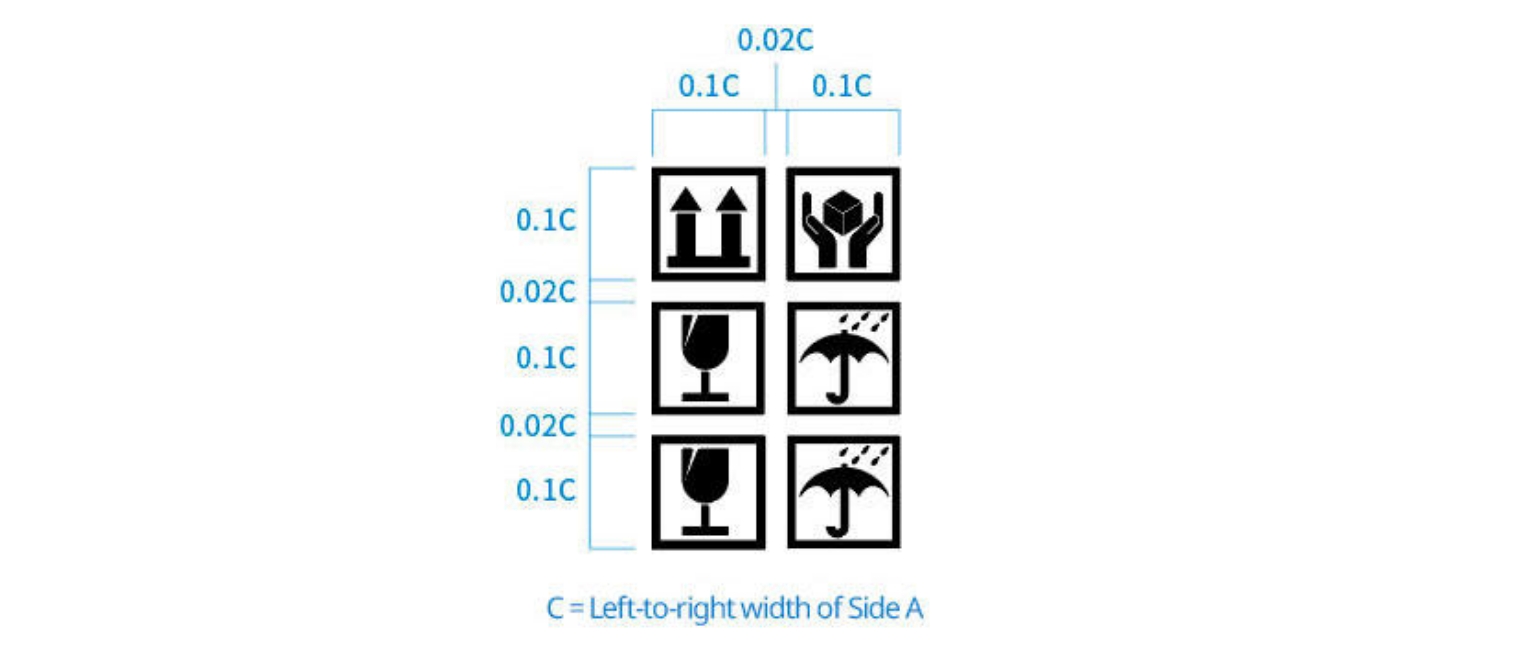

Regulations for pictogram section
Regulations for pictogram section
